Application Scenarios
1.Round oscillating screening equipment for powder and granular materials.
2.Suitable for grading and separation in chemical, food and light industrial applications.
3.Adjustable oscillating motion for gentle and efficient screening.
Introduce

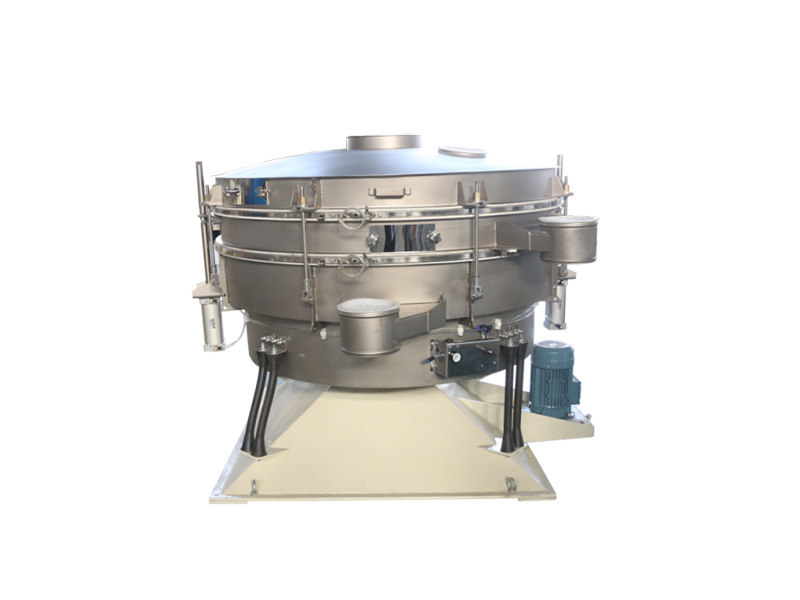

YBS Series Round Oscillating Screen is a screening machine designed for material grading and separation using a low-speed oscillating motion.Unlike high-frequency vibrating screens, the YBS screen uses a circular oscillating movement, allowing materials to move smoothly across the screen surface.
This gentle screening process reduces particle breakage and is especially suitable for materials that require stable, low-impact separation.
Main technical parameters
Type | Diameter(mm) | Screen area （m²） | Feed size(mm) | Screening size(mm) | Layers | Motor power（kW） |
YBS-1000 | 1000 | 0.66 | ≤25 | 0.073-3 | 1-5 | 1.5 |
YBS-1200 | 1200 | 0.98 | 2.2 | |||
YBS-1500 | 1500 | 1.81 | 4 | |||
YBS-2000 | 2000 | 2.8 | 4 | |||
YBS-2500 | 2500 | 4.61 | 5.5 |
Clean ways:
1. Ultrasonic screen cleaning
Ultrasonic screen cleaning is suitable for the processing of very fine materials. This system uses high-frequency vibrations generated by the ultrasonic generator to reach the screen to achieve the purpose of screen cleaning. This device not only effectively cleans and unblocks the screen, but also significantly improves production capacity. There are currently our company's self-made ultrasonic and imported ultrasonic for users to choose. In addition, the style can be updated in time to meet the needs of different screening processes.
2. Bouncing ball screen cleaning
This screen cleaning method is achieved by irregularly striking the screen with high-performance bouncing balls located below the screen and above the ball support plate. The structure is simple and easy to operate, and the effect is significant. It is suitable for screen cleaning and anti-blocking in most screening operations.
